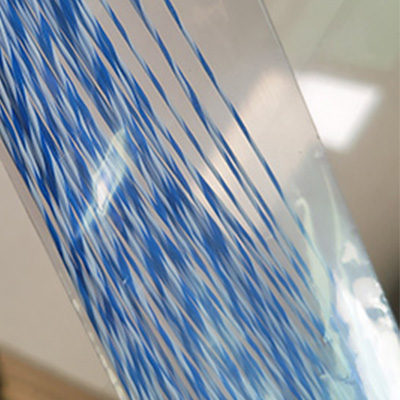

Zebra Spiral Heat Shrink Tube

Product Description：

KMT-PTFE Zebra (spiral) heat shrink cannulae are used to shrink guide wires for flexible endoscopic devices. The unique colour pattern indicates the movement of the wire to assist the surgeon in the procedure. Due to the low friction properties of PTFE, the Zebra (spiral) heat shrink has exceptional colouring capabilities. We offer shrinkage ratios of up to 4:1

KMT-PTFE zebra (spiral) heat shrink cannulas can be sterilised using Eto or autoclave. Polytetrafluoroethylene (PTFE) is also an excellent electrical insulator with a temperature range from -200°C to +260°C. Recovery temperature is 340°C +/- 5°C and recovery time varies depending on the design.

Uses  ：

● For electrical insulation and stress relief of products

 Product characteristics：

●Working temperature range: -200°C and 260°C

●Shrinkage ratio 4:1

●Low friction, high temperature resistance, impact resistance, corrosion resistance

Supports sterilization environments: gamma and ethylene oxide：

●Made according to ISO 10993, ROHS standard

●Standard colour: yellow and black. Specifications, colours can be customised

Table 1 Product customisation capabilities：

●Minimum wall thickness: 0.08mm (smaller wall thicknesses to be confirmed on a case-by-case basis)

●Inner diameter 0.8-2.0mm

●Stripe spacing: maximum 16 stripes per inch

●Striping direction: left-hand and right-hand options

●Color: Black/Yellow, White/Blue
